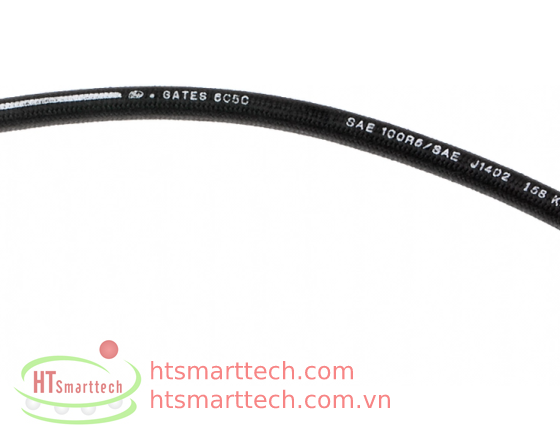

C5C HYDRAULIC HOSE - SAE 100R5
Recommended for medium pressure hydraulic petroleum-based oil lines in impulse applications, lube oil, air and water in applications such as air brakes, power steering (CAUTION: intended for heavy duty commercial vehicle use only), turbocharger oil supplies, tilt cab cylinders, and filtration lines. Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications. Not recommended for gasoline or diesel fuel.
- Recommended Couplings: C5 Field Attachable Couplings, C5X Field Attachable Couplings (-5, -8 and -12), MegaCrimp® Couplings (Depending on Size), GlobalSpiral™ Couplings (Depending on Size).
- DOT FMVSS 106-74 Type AII and SAE J1402 Type AII for air brake applications (-4 to -12).
- Please see Gates eCrimp for correct fitting recommendation.
| RECOMMENDED FOR | Medium-pressure hydraulic petroleum-based oil lines in impulse applications, lube oil, air and water in applications such as air brakes, power steering (CAUTION: Intended for heavy-duty commercial vehicle use only). turbocharger oil supplies, tilt cab cylinders, transmission coolant and filtration lines. Meets or exceeds requirements of SAE 100R5 for traditional hydraulic applications, DOT FMVSS 106-74 Type All and SAE J1402 Type All for air brake applications (-4 to -12). Not recommended for gasoline or diesel fuel. |

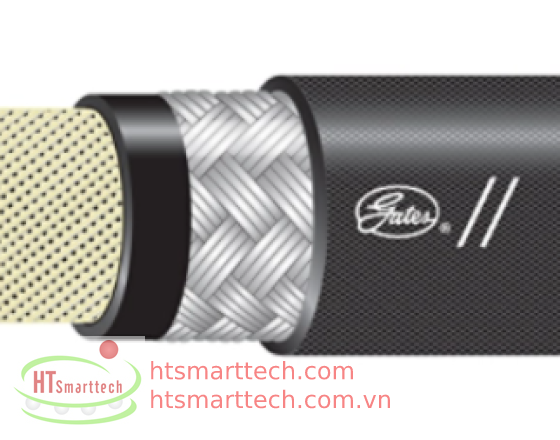

| TUBE | Black, oil and heat-tensile synthetic rubber (Polychloroprene -4 and -5), Nitrile -6 through -40). See Hose Stock Characteristics. |
| REINFORCEMENT | One braid of high-tensile carbon steel wire over one braid of polyester. |
| COVER | Black, oil and mildew resistant, polyester braid. |
| TEMPERATURE RANGE | Under SAE 100R5 (hydraulic) conditions -40ºF to +212ºF (-40ºC to +100ºC). All-purpose fleet application (hot lube oil lines) -40ºF to +300ºF (-40ºC to +149ºC). Air to +160ºF (71ºC) only. Avoid continuous use at maximum temperature concurrent with maximum working pressures. For water emulsions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | C5 Flex Attachable Couplings (-4 through -32) (G34) Section K C5X Field Attachable Couplings (-5, -8 and -12) (G34) Section K (See Crimp Data Manual 428-7365 or eCrimp) |
