C5C-XH XTREME™ HEAT HOSE - SAE 100R5
High-temperature lube oil lines for on-highway truck and bus, off-road construction and agricultural vehicles. Recommended for high temperature petroleum based or phosphate ester fluids, turbocharger oil supply and hot lube oil lines. Meets the requirements of SAE 100R5 for hydraulic applications, SAE 1405 hot oil circulation.
- Recommended For: Extremely high-temperature petroleum-based or phosphate ester fluids, turbocharger oil supply and hot lube oil lines.
- Recommended Couplings: C5 Field Attachable Couplings (-6, -16 and -20), C5X Field Attachable Couplings (-5, -8 and -12), GlobalSpiral™ Couplings (Depending on Size), MegaCrimp™ Couplings (Depending on Size).
- DOT FMVSS-106-74 type AII and SAE J1402 type AII for air brake applications (-4 to -12)][-5, -6, -8, -16 and -20 validated with MegaCrimp™; -10, -12 with GlobalSpiral™.
- Acceptable for use with oil and air for maximum application flexibility.
- Compatible with both petroleum and phosphate ester fluids.
- Has passed the tube fuel resistance requirements of SAE 30R2.

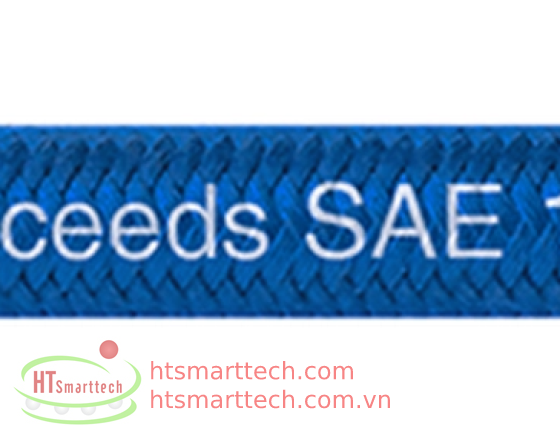

- Blue textile braid cover.
| RECOMMENDED FOR | Extremely high-temperature petroleum-based or phosphate ester fluids, turbo charger oil supply and hot lube oillines. |

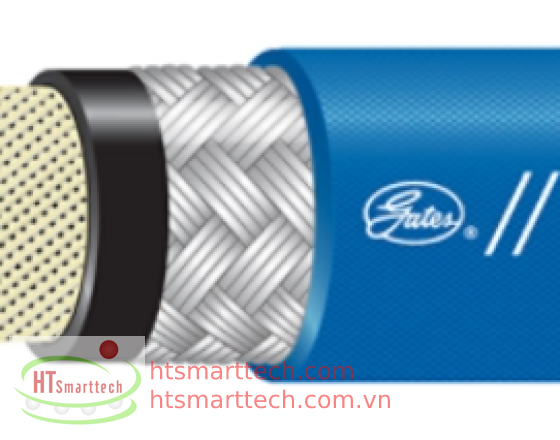

| TUBE | Black, oil and heat-resistant synthetic polymer tube (CPE). See Hose Stock Characteristics. |
| REINFORCEMENT | Braided, high-tensile wire and textile. |
| COVER | Blue, oil and mildew resistant polyester/textile braid. |
| TEMPERATURE RANGE | -40ºF to +302ºF (-40ºC to +150ºC) |
| COUPLING RECOMMENDATION | C5 Field Attachable Couplings (-6, -16 and -20) (G34) Section K C5X Field Attachable Couplings (-5, -8 and -12) (G34) Section K Crimp options are MegaCrimp®, GlobalSpiral™ (depending on size) (See Crimp Data Manual 428-7365 or eCrimp) |
