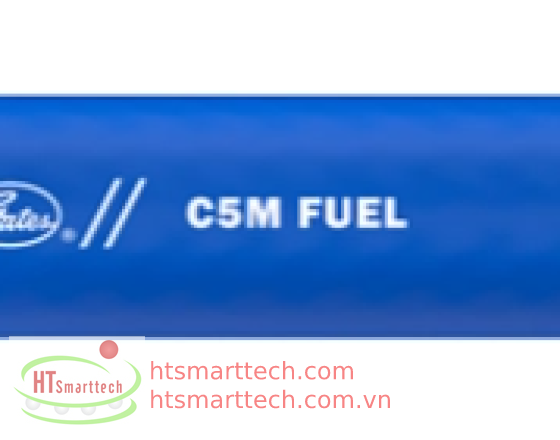

C5M MARINE FUEL LINE HOSE
Recommended for all commercial and recreational vessel fuel line applications, C5M Marine Fuel Line hose is suitable for marine diesel, gasoline, B100 Biodiesel, gasohol fuels and hot oil applications.
- Recommended For: All commercial and recreational vessel fuel line applications. Suitable for on-shore/off-shore and marine diesel fuel, gasoline, B100 Bio-Diesel, gasohol fuels and hot oil applications up to +212F.
- For use with Brass or Steel C5 and C5X Field Attachable Couplings [G34 Series], GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series].
- Nitrile tube with a one-wire braid reinforcement; Nitrile and PVC blue cover.
- Exceeds performance requirements of SAE J30R2 for non-marine applications and meets USCG marine fuel line specifications, SAE J1527 B100 to +52°C (+125°F) Type A Class 1 and SAE J1942-1 Type A and Type B requirements.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | All commercial and recreational vesel Ffuel line applications. Suitable for marine diesel, gasoline, B100 Bio-Diesel, gasohol fuels and hot oil applications. |
| TUBE | Nitrile. See Hose Stock Characteristics. |
| REINFORCEMENT | One wire braid. |
| COVER | Nitrile and PVC. Blue. See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -4ºF to +212ºF (-20ºC to +100ºC) continuous service. |
| COUPLING RECOMMENDATION | Brass or Carbon C5 Field Attachable Couplings (G34) Section K C5X Field Attachable couplings (-5, -8 and -12) (G34) Section K GlobalSpiral™ Couplings (-10 and -12) (G25) Section G MegaCrimp® Couplings (-5, -6, -8 and -16) (G25) Section G (See Crimp Data Manual 428-7365 or eCrimp) |
