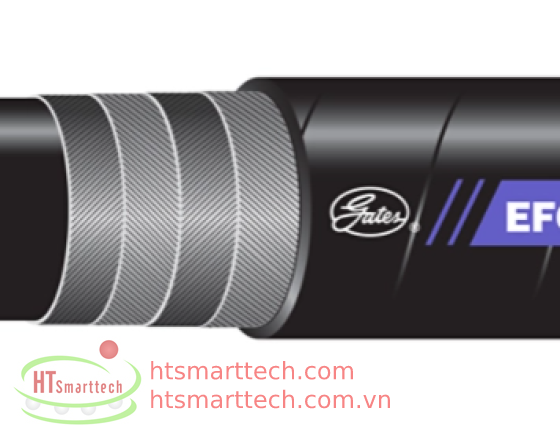

EFG4K SPIRAL WIRE HOSE - SAE 100R12 - XTRATUFF® COVER
EFG4K hose is recommended for very high–pressure, high–impulse applications. Exceeds all requirements of ISO 18752 Grade D (except OD for -6 to -10), SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based fluids.
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose.
- Available in 121' through 200' continuous lengths.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only] and Stainless Steel Spiral Couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | Very high-pressure, high-impulse extremely abrasive applications. Exceeds all requirements of ISO 18752 Grade D*, SAE 100R12, EN 856 R12 and ISO 3862 Type R12. *(Size 3/8", 1/2" and 5/8" exceed ISO 18752 Grade D performance but does not meet OD requirements). Compatible with biodegradable hydraulic fluids like polyolester, polyslycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| TUBE | Black, oil resistant, synthetic ruber (Nitrile). See Hose Stock Characteristics. |
| REINFORCEMENT | Four alternating layers of spiraled, high-tensile steel wire. |
| COVER | Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also available with unique abrasion resistant XtraTuff® or Standard covers. See Hosse Stock Characteristics. |
| TEMPERATURE RANGE | -40ºF to +250ºF (-40ºC to 121ºC). For water emulsions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | GlobalSpiral™ Couplings (G20) Section E GlobalSpiral™ One-Piece Couplings (MC 4-20) (-20 only) Section E Stainless Steel Spiral Couplings (G18) Section F (See Crimp Data Manual 428-7365 or eCrimp) |
