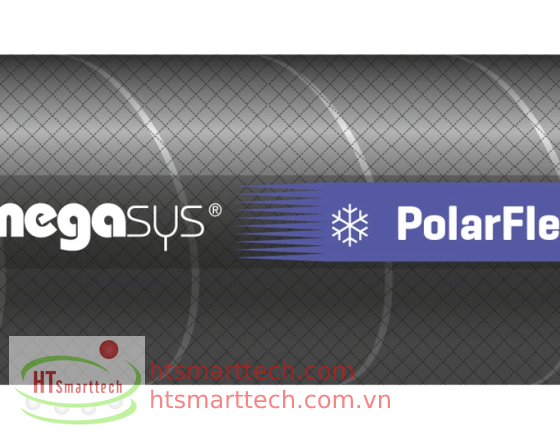

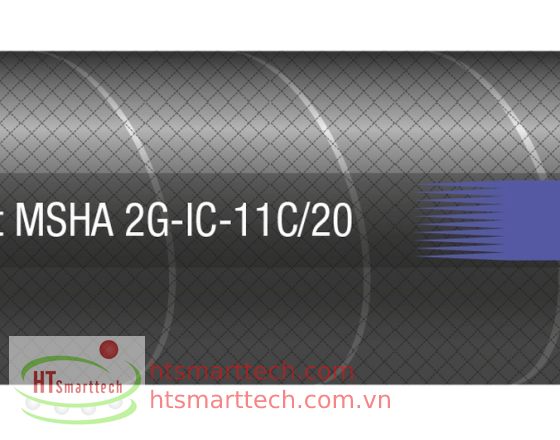

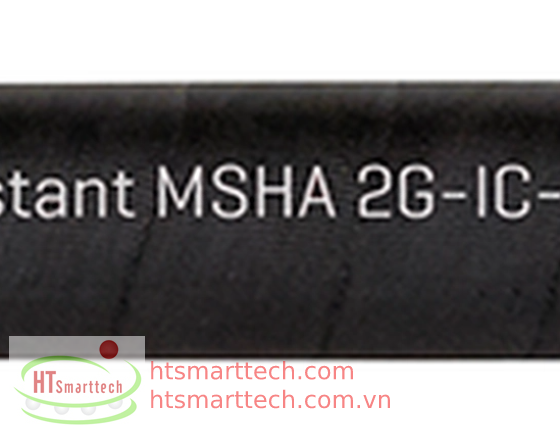

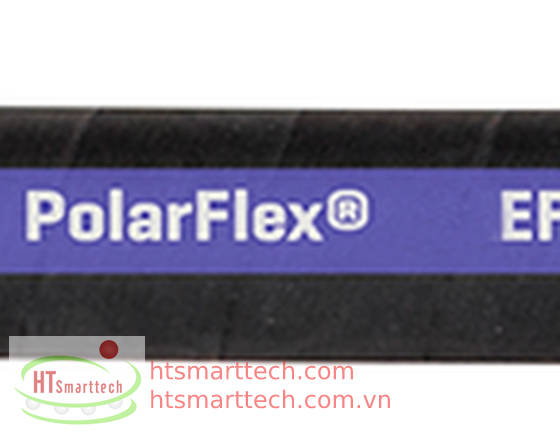

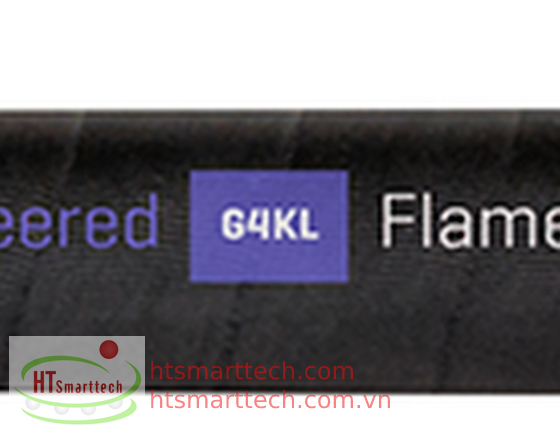

EFG4KL LOW TEMP SPIRAL WIRE HOSE
EFG4KL Low-Temp hose is recommended for very high-pressure hydraulic applications to provide greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms in very low temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based fluid.
- Compatible with biodegradable hydraulic fluids and standard petroleum-based fluids.
- For use with GlobalSpiral™ Couplings [G20 Series] and GlobalSpiral™ OnePiece Couplings [G21 Series, -20 Only].
- Resistant to cover cracking at low temperature and tight bends.
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R12 bend radii.
| RECOMMENDED FOR | Very high-pressure hydraulic applications in low-temperature environments. Compatible with biodegradable hydraulic fluids like polyolester, polyslycol and vegetable oil as well as standard petroleum-based fluid. |
| TUBE | Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics. |

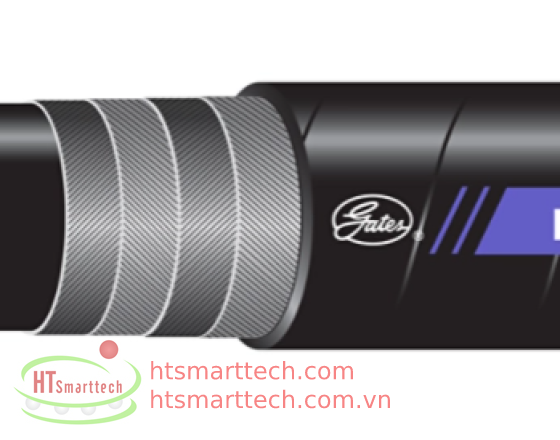

| REINFORCEMENT | Four alternating layers of spiraled, high-tensile wire. |
| COVER | Black, oil resistant, synthetic rubber (Polychloroprene), with color coded layline. See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -70ºF to +212ºF (-57ºC to +100ºC). |
| COUPLING RECOMMENDATION | GlobalSpiral™ Couplings (G20) Section E. GlobalSpiral™ One-Piece Couplings (MC 4-20) (-20 only) Section E (See Crimp Data Manual 428-7365 or eCrimp) |
