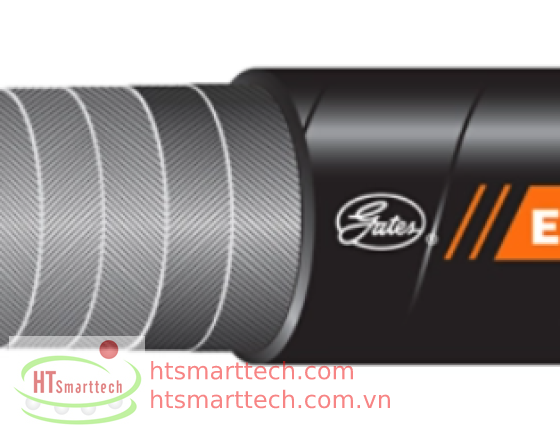

EFG6K SPIRAL WIRE HOSE - SAE 100R15 - MEGATUFF® COVER
EFG6K is recommended for extremely high-pressure, high-impulse applications such as hydrostatic transmissions. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Recommended for extremely high pressure and high impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16, and -20), and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24). 12EFG6K meets ISO 18752 Grade D. Recommended Couplings: GlobalSpiral™ Couplings, GlobalSpiral™ MAX Pressure Couplings, Stainless Steel S Couplings (-6 through -20).
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral MAX Pressure Couplings [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32).
- EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | Extremely high-pressure, high-impulse applications such as hydrostatic transmissions. EFG6K is designed to meet or exceed all requirements of SAE 100R15 specifications and performance requirements of EN 856 4SP (-6, -8, -10 and -12), EN 856 4SH (-12, -16 and -20) and ISO 2862 Type R15 (-6, -8, -10, -12, -16, -24). Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids. Available in 121' through 200' continuous lengths. |
| TUBE | Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics. |
| REINFORCEMENT | Four (six for -20, -24 and -32) alternating layers of spiraled, high-tensile steel. |
| COVER | Black, oil, abrasion and weather resistant MegaTuff® cover with color coded layline. Also Available in Standard cover. See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -40°F to +250°F (-40°C to 121°C). For water emulsion see Temperature Limits Table. |
| COUPLING RECOMMENDATION | GlobalSpiral™ Couplings (G20) Section E GlobalSpiral™ MAX Pressure Couplings (-24 = G24), (-32 = G32) Section E Stainless Steel Spiral Couplig (-6 through -20) (G18) Section F (See Crimp Data Manual 428-7365 or eCrimp) |
