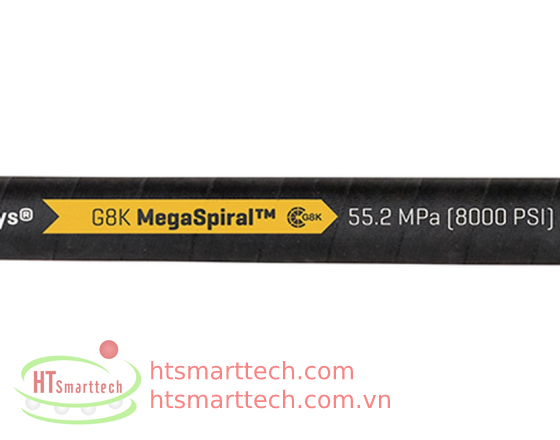

G8K Spiral Wire Hose
The G8K Spiral Wire Hose is recommended for ultra high-pressure, high-impulse applications such as hydrostatic transmissions. It is also for use in the construction, agriculture, forestry, underground or open pit mining, and other industries on applications where extremely high pressure capability is required. G8K hoses offer industry-leading bend radius capability, which leads to ease of routing and installation, longer hose life in flexing applications, and fewer bent tube fitting requirements.
- For use with G8K Couplings [G19 Series].
- Tested to industry-leading 1,000,000 impulse cycles.

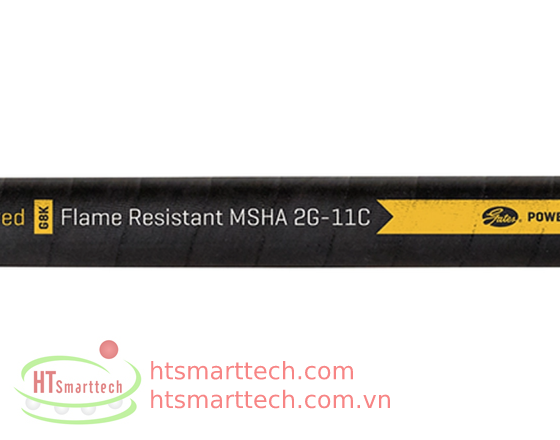

- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | Ultra high-pressure, high-impulse applications such as hydrostatic transmissions, for use in the construction, agriculture, forestry, underground or open-pit mining, or other industries on applications where extremely high-pressure capability is required. G8K hose and couplings offer industr-leading bend redius capability, which leads to ease of routing and installing, longer hose life in flexing applications and fewer bent tube fitting requirements. |
| TUBE | Black, oil resistant Polychloroprene tube material allows for the high pressure, high temperature performance required in these demanding applications. See Hose Stock Characteristics. |

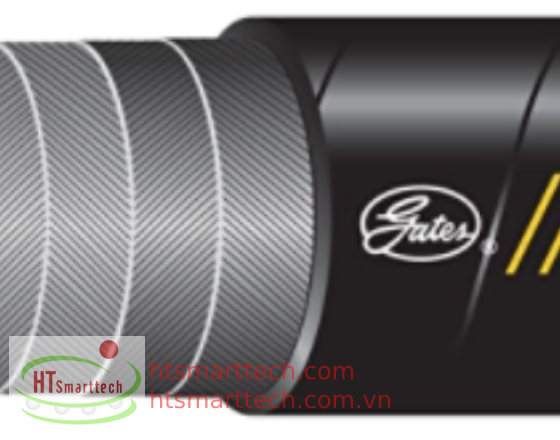

| REINFORCEMENT | Six alternating layers of high-tensile steel wire spiral construction. |
| COVER | Black, oil resistant, synthetic rubber (Polychloroprene), with color coded layline. See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -40ºF to +250ºF (-40ºC to +121ºC). For water emusions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | G8K Couplings (G19) Section D (See Crimp Data Manual 428*7365 or eCrimp) |
