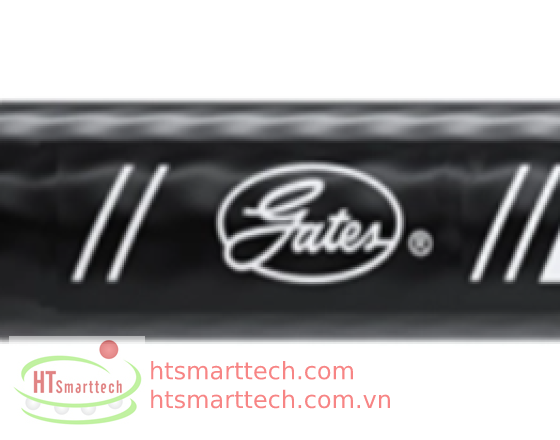

GLOBAL G1H 1-WIRE BRAID HOSE - HIGH-TEMP - SAE 100R1 TYPE AT
Global G1H hose is recommended for high-temperature, medium-pressure hydraulic oil line applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters.
- Recommended For: High-temperature medium-pressure hydraulic oil lines.
- For use with GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series], MegaCrimp™ Couplings [G25 Series] and Stainless Steel Braid Couplings [G17 Series].
- Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing routing.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | High-temperature medium-pressure hydraulic oil lines. Meets or exceeds requirements of SAE 100R1 Type AT. |
| TUBE | Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics. |
| REINFORCEMENT | One braid of high-tensile steel wire. |
| COVER | Black, oil and abrasion resistant, synthetic rubber (CSM). See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -40ºF to +275ºF (-40ºC to +135ºC) constant and +300ºF (+149ºC) intermittent (up to 10% of operating time). For water emulsions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | GlobalSpiral™ Couplings (G20) Section E GlobalSpiral™ Plus Couplings (-24 and -32) (G22) Section E MegaCrimp® Couplings (G25) Section G Stainless Steel Braid Couplings (-4 through -32, except -16 & -24) (G17) Section H (See Crimp Data Manual 428-7365 or eCrimp) |
