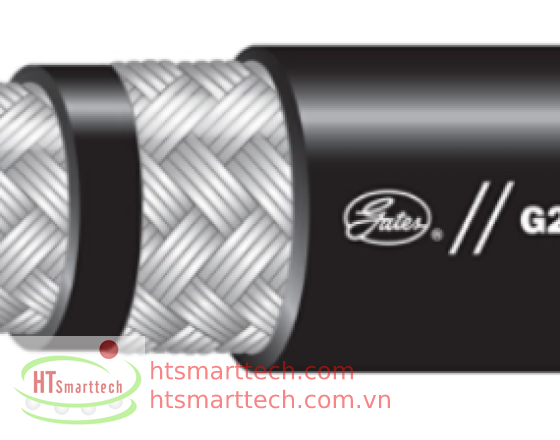

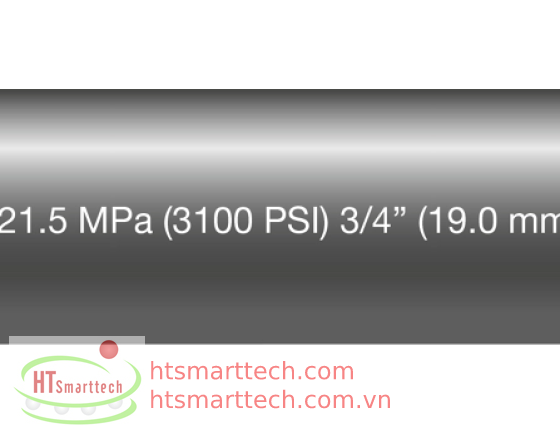

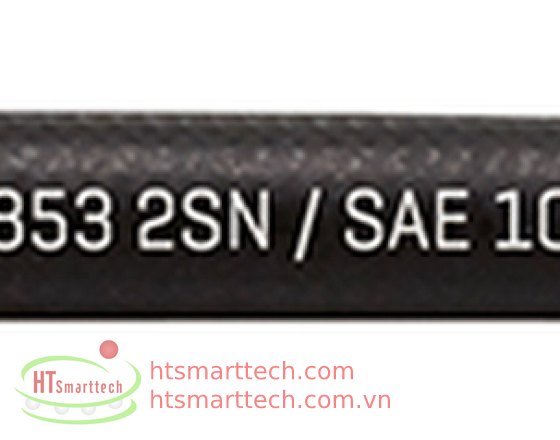

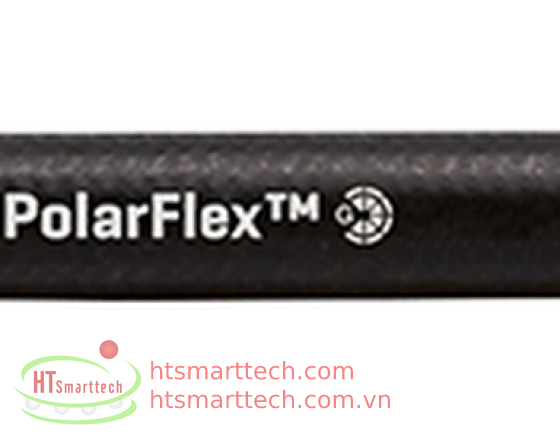

GLOBAL G2L POLARFLEX® HOSE - SAE 100R2 TYPE AT
G2L PolarFlex® is recommended for extremely low temperature high-pressure hydraulic oil line applications and is compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
- Recommended For: Low-temperature high-pressure hydraulic oil lines.
- For use with Field Attachable Type T Couplings [G28 Series], GlobalSpiral™ Couplings [G20 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp™ Couplings [G25 Series].
- Tested to industry-standard 600,000 impulse cycles.
- Unique low temperature tube for extended service life at extremely low temperatures.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | Low -temperature high-pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN. Qualified to Mil-DTL-13531 Type II Class B. |
| TUBE | Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics. |
| REINFORCEMENT | Two braids of high-tensile steel wire. |
| COVER | Black, oil and abrasion resistant, thin synthetic rubber (Polychloroprene). See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -70ºF to +212ºF (-57ºC to + 100ºC). For water emulsions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | Field Attachable Type T Couplings (-4 through -24) (G28) Section J GlobalSpiral™ Couplings (-6 through -20) (G20) Section E GlobalSpiral™ Plus Couplings (-24 and -32) (G22) Section E MegaCrimp® Couplings (G25) Section G (See Crimp Data Manual 428-7365 or eCrimp) |
