GLOBAL M4KL MEGA4000™ POLARFLEX® HOSE - SAE 100R19
Global M4KL Mega400™ PolarFlex® Low-Temp hose is recommended for extremely low temperature high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds SAE 100R19 and ISO11237 R19. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-12 and -16).
- Recommended for high-pressure hydraulic applications in low-temperature environments.
- For use with GlobalSpiral™ Couplings [G20 Series], MegaCrimp™ Couplings [G25 Series], Stainless Steel Braid Couplings [G17 Series] and Stainless Steel Spiral Couplings [G18 Series].
- Resistant to cover cracking at low temperature and tight bend radius.
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing.
- Tested to 600,000 impulse cycles, 3 times the industry standard.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | High-pressure hydraulic applications in low-temperature environments. Exceeds ISO 18752 Grade B, SAE 100R19 and ISO 11237 R19. Allows for tighter bend raidus, increased working pressure and improved impulse cycles than industry standards. rovides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms. |
| TUBE | Black, oil resistant (Nitrile). See Hose Stock Characteristics. |

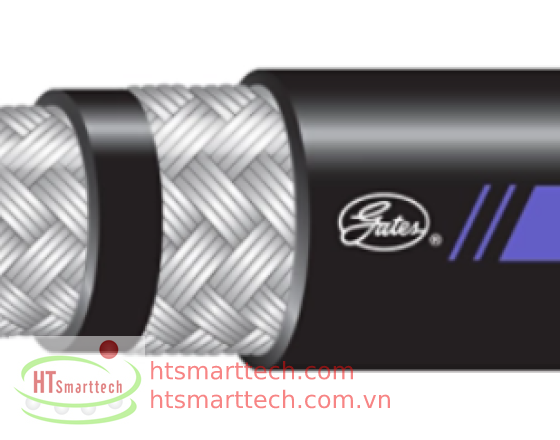

| REINFORCEMENT | Two braids of high-tensile steel wire. |
| COVER | Black, oil, abrasion and weather resistant synthetic rubber (Polychloroprene), with color coded layline. See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -70ºF to +212ºF (-57ºC to +100ºC). |
| COUPLING RECOMMENDATION | GlobalSpiral™ Couplings (-6 through -16) (G20) Section E MegaCrimp® Couplings (-4 through -12) (G25) Section G Stainless Steel Braid Couplings (-4 through -8) (G17) Section H Stainless Steel Spiral Couplings (-12 and -16) (G18) Section F (See Crimp Data Manual 428-7365 or eCrimp) |
