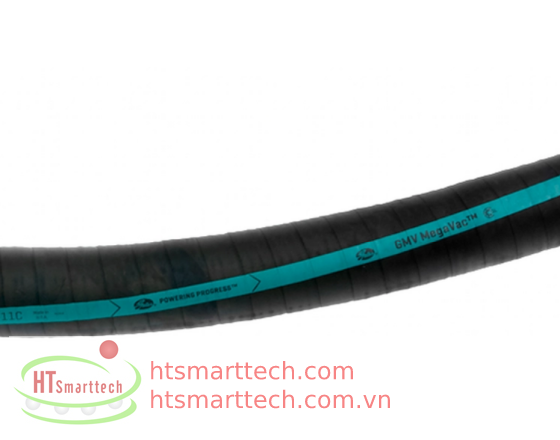

GMV GLOBAL MEGAVAC® RETURN LINE AND SUCTION HOSE - SAE 100R4
For use with petroleum and water base hydraulic fluids in suction lines or in low–pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV–GL with use of HeatGuard® high temp sleeve.
- Recommended For: Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Uses half the bend radius of SAE 100R4.
- For use with GL Couplings [G43 Series], GlobalSpiral™ Plus Couplings [G22 Series] and MegaCrimp™ Couplings [G25 Series].
- Easy installation with 1:1 bend radius which saves time and is kink-free.
- Industry-leading flexibility solves complex routings through tight spaces using less hose.
- Uses a helical spiral-wire to prevent hose collapse under suction.
- Meets SAE 100R4, J30R5, and J20R5 (except tube dimensions).
| RECOMMENDED FOR | Petroleum and water base hydraulic fluids in suction lines or in low-pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV-GL with use of HeatGuard® high temp sleeve. |
| TUBE | Black, synthetic rubber is specifically designed for resistance to high temperatures (Nitrile). See Hose Stock Characteristics. |

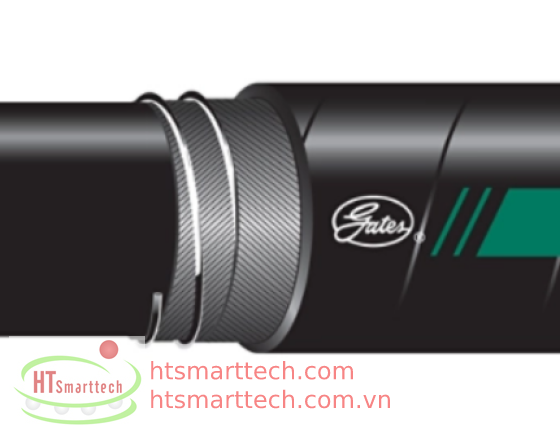

| REINFORCEMENT | Double spiral textile (braid for -12, -16 and -20) reinforced with a helical spiral-wire to prevent collapse. |
| COVER | Black synthetic rubber is oil and abrasion resistant (Polychloroprene). See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -40ºF to +275ºF (-40ºC to +135ºC). For water emulsions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | GL Couplings (G43) Section M MegaCrimp® Couplings (G25) Section G Use clamp over beaded nipple (See Crimp Data Manual 428-7365 or eCrimp) |
