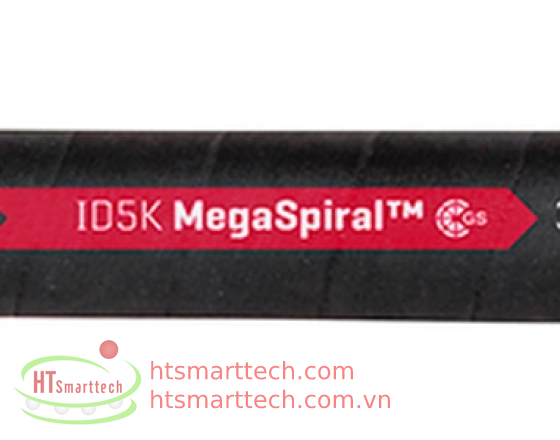

ID5K SPIRAL WIRE HOSE - ISO 18752 GRADE D
ID5K hose is recommended for extremely high pressure hydraulic applications and is designed to meet or exceed all requirements of ISO 18752 Grade D and SAE100R13. It has been tested to 2,300,000 cycles at 133% of working pressure. This FAR exceeds SAE impulse testing at only 120% of working pressure for 500,000 cycles. Ideal for high to extremely high pressure and high impulse applications such as hydrostatic drives, mobile construction equipment, boom arms, mining trucks, excavators, forestry and agricultural machinery.
- Ultra compact, reduced diameter design improves flexibility, lowers force-to-bend, and reduces weight.
- For use with GlobalSpiral™ Couplings [G20 Series] with GSID1F-4 Ferrules.
- Tested up to 2,300,000 impulse cycles.

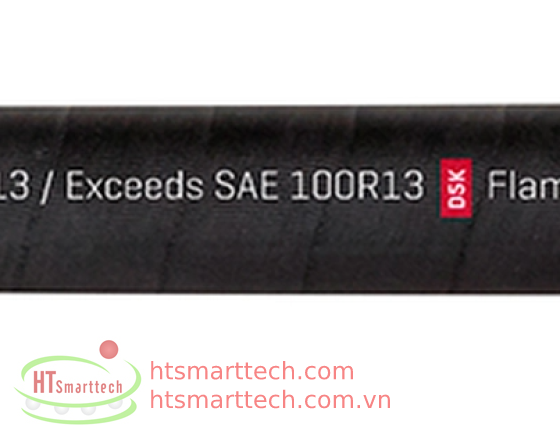

- Meets or exceeds all requirements of SAE100R13 and ISO 18752 Grade D.
| RECOMMENDED FOR | Extremely high-pressure, high-impulse applications. Tested up to 2.3 milion impulse cycles. Exceeds ISO 18752, Class 350, Grade D, Type DC. Meets SAE 100R13. |
| TUBE | Black, oil resistant, synthetic rubber (HNBR). |

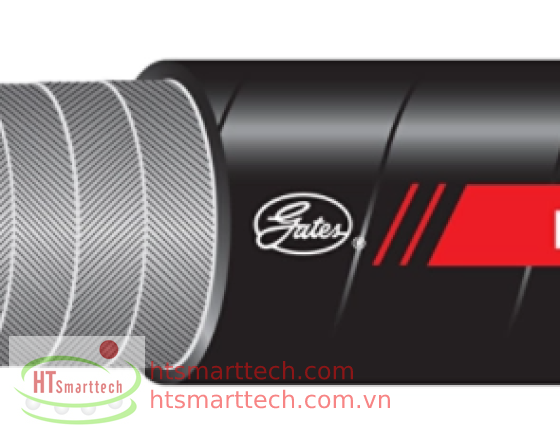

| REINFORCEMENT | Four alternating layers of spiraled, high-tensile strength steel. |
| COVER | Black, oil, abrasion and weather resistant, synthetic rubber (Polychloroprene). |
| TEMPERATURE RANGE | -40ºF to +250ºF (-40ºC to +121ºC) |
| COUPLING RECOMMENDATION | Permanent no-skive GlobalSpiral™ (with GSID1F-4 Ferrules) (See Crimp Data Manual 428-7365 or eCrimp) |
