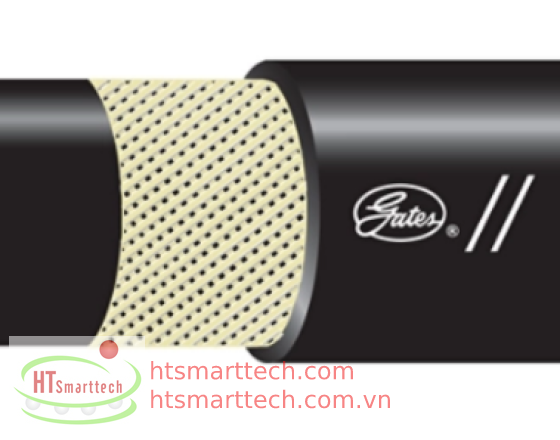

RLA 1-FIBER BRAID RETURN LINE AND LOW PRESSURE HOSE
RLA hose is recommended for low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air.
- Recommended For: Low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air.
- For use with MegaCrimp™ Couplings [G25 Series] and Power Crimp™ Couplings (-3 only), GLP Couplings [G42 Series] (RLA -4 through -12 only), and GLX™ Couplings [G44 Series] (-12 and -16 only).
- Meets SAE 30R2 Type 1 requirements (except wall thickness for RLA) including B20 (up to 20%) biodiesel for constant contact up to +125°F (51°C). Also meets SAE 30R2 Type 2 performance requirements.
- Meets Flame Resistance Acceptance Designation MSHA 2G.
| RECOMMENDED FOR | Low-pressure hydraulic oil return lines for general purpose water, glycol antifreeze solutions, conveying diesel fuel, gasonline or air. Meets SAE 30R2 performance requirements of both Type 1 and Type 2 for fuel and B20 constant contact up to +125ºF biodiesel fuel transfer applications. |
| TUBE | Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics. |
| REINFORCEMENT | One fiber braid (-3 to -10). Spiral braid (-12 to -16). |
| COVER | Black, synthetic rubber. Oil and abrasion resistant (Nitrile and PVC). See Hose Stock Characteristics. |
| TEMPERATURE RANGE | -40ºF to +212ºF (-40ºC to +100ºC). Air to +160ºF (+71ºC) only. For water emulsions see Temperature Limits Table. |
| COUPLING RECOMMENDATION | GLX® Couplings (-12 and -16) (G44) Section N MegaCrimp® Couplings (G25) Section G Power Crimp® Couplings (-3) Section I (See Crimp Data Manual 428-7365 or eCrimp) |
