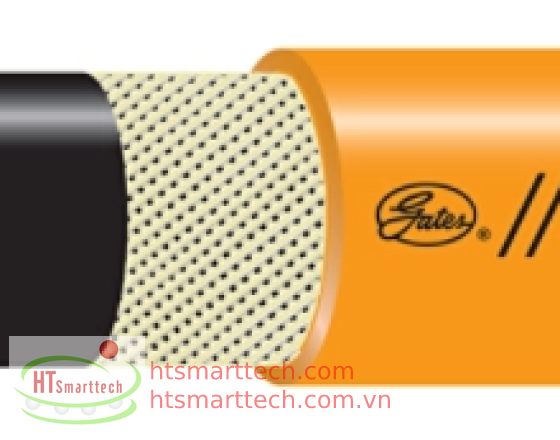

TH7NC NON CONDUCTIVE HYDRAULIC HOSE - SAE 100R7
TH7NC non-conductive hydraulic hose is recommended for petroleum and synthetic hydraulic fluids. Applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NC meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius.
- For use with MegaCrimp™ Couplings [G25 Series] and Swage PCTS Couplings [G51 Series] (-2 and -3 only).
- Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes.
- Meets ANSI A92.2 for vehicle mounted aerial devices.
| RECOMMENDED FOR | Petroleum and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices. |
| TUBE | -2, -12 and -16: 100% seamless Nylon that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol; -3 through -8 Polyester. See Hose Stock Characteristics. |
| REINFORCEMENT | Synthetic fiber and Nylon (-2 only) |
| COVER | Orange Urethane that resists hydraulic fluids, high temperatures, aging and weathering. Orange TH7NC is non-perforated for applications requiring electrical non-conductivity. Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75kV/Ft. for five minutes (Orange is industry accepted color for non-conductive hose). |
| TEMPERATURE RANGE | -65ºF to +200ºF (-54ºC to +93ºC) continuous service for petroleum nd synthetic oils. Maximum of +159ºF (+70ºC) for water, water/oil emulsions and water glycol. |
| COUPLING RECOMMENDATION | MegaCrimp® Couplings (G25) Section G Swage PCTS Couplings (-2 and -3) (G51) Section O (See Crimp Data Manual 428-7365 or eCrimp) |
