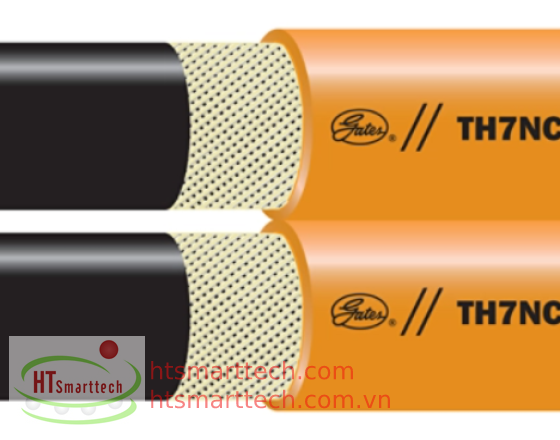

TH7NCDL NON CONDUCTIVE DUAL LINE HYDRAULIC HOSE - SAE 100R7
Recommended for petroleum, water-based and synthetic hydraulic fluids, TH7DL applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NCDL meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius.
- For use with MegaCrimp™ Couplings [G25 Series].
- Meets ANSI A92.2 for vehicle mounted aerial devices.
| RECOMMENDED FOR | Petroleum, water-based and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NCDL meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices. |
| TUBE | Nylon |
| REINFORCEMENT | Synthetic fiber |
| COVER | Orange Urethane that resists hydraulic fluids, high temperatures, aging and weathering. Orange TH7NCDL is non-perforated for applications requiring electrical non-conductivity. Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75kV/Ft, for five minutes. (Orange is industry accepted color for non-conductive hose.) |
| TEMPERATURE RANGE | -65ºF to +200ºF (-54ºC to +93ºC) continuous service for petroleum and synthetic oil. Maximum of +158ºF (+70ºC) for water, water/oil emulsions and water glycol. |
| COUPLING RECOMMENDATION | MegaCrimp® Couplings (G25) Section G (See Crimp Data Manual 428-7365 or eCrimp) |
